Lake Georgetown: 89.9% full as of 2024-05-21

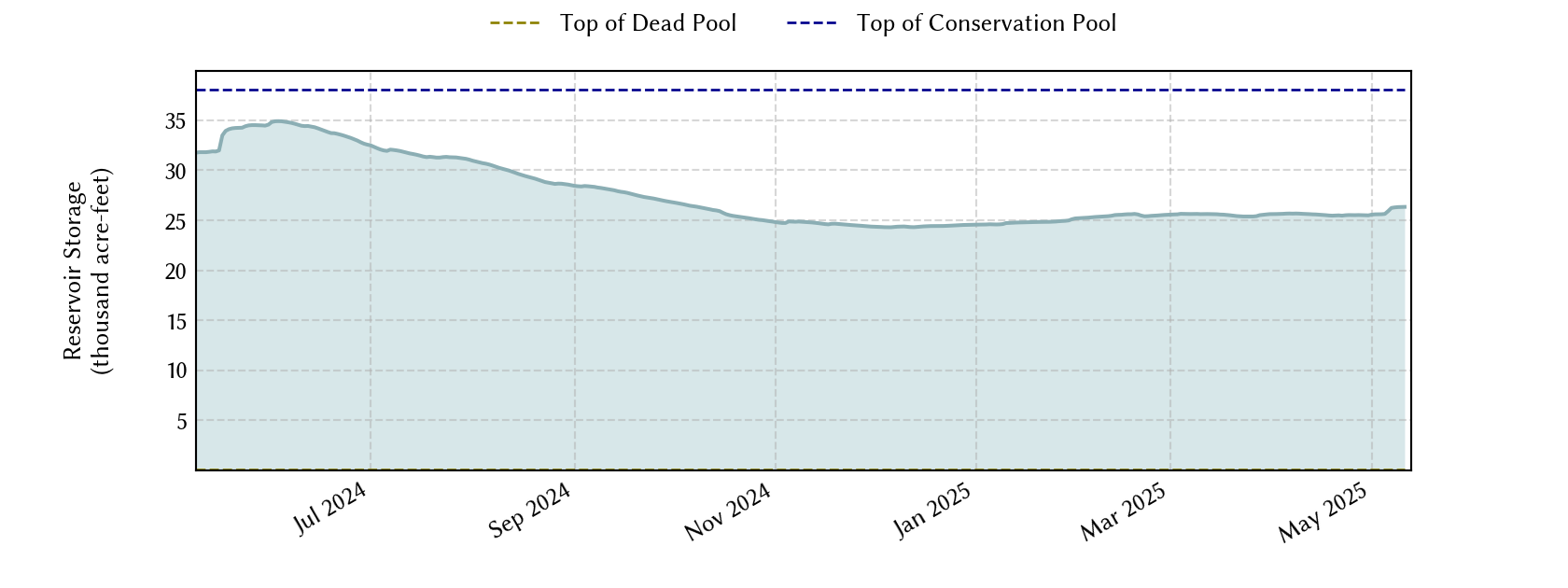

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, and (2) the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

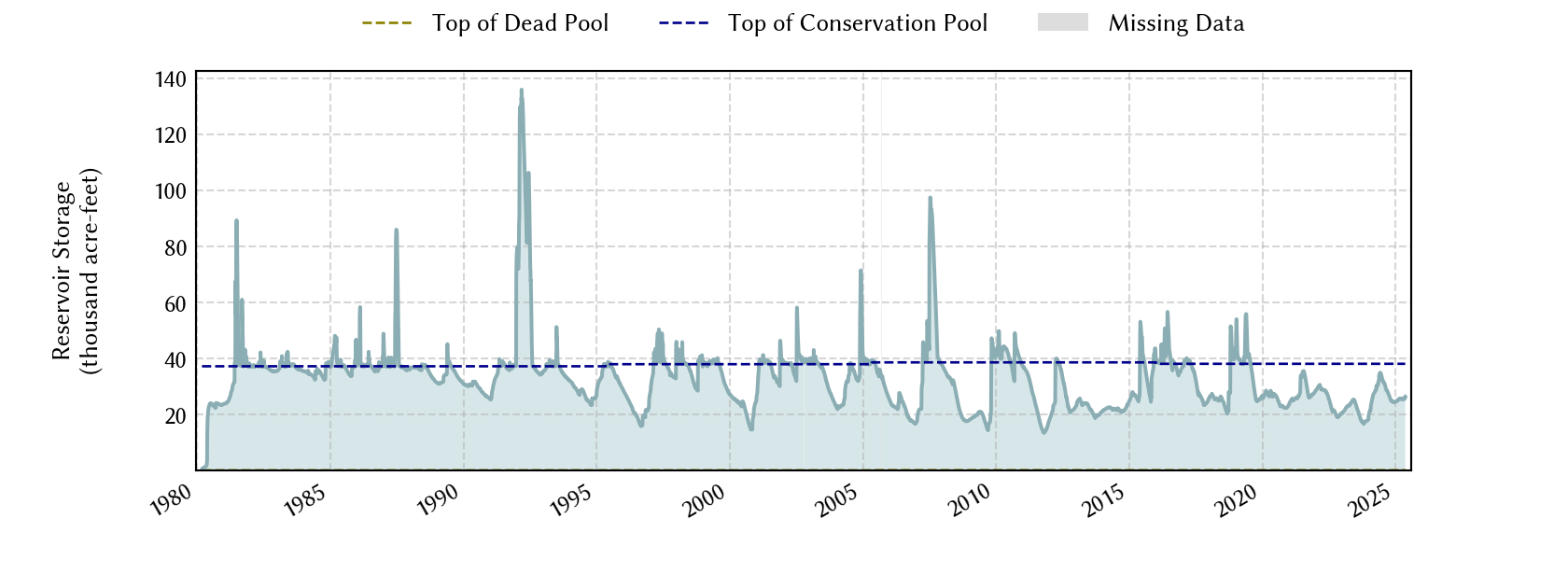

Historical Data

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Today 2024-05-21 89.9 787.98 34,247 34,184 38,005 1,227
Yesterday 2024-05-20 89.8 787.95 34,210 34,147 38,005 1,226
2 days ago 2024-05-19 89.6 787.88 34,124 34,061 38,005 1,224
1 week ago 2024-05-14 83.8 786.03 31,905 31,842 38,005 1,175
1 month ago 2024-04-21 79.1 784.48 30,114 30,051 38,005 1,134
3 months ago 2024-02-21 69.7 781.23 26,564 26,501 38,005 1,050
6 months ago 2023-11-21 46.2 771.72 17,633 17,570 38,005 836
1 year ago 2023-05-21 65.9 779.83 25,120 25,057 38,005 1,014
*

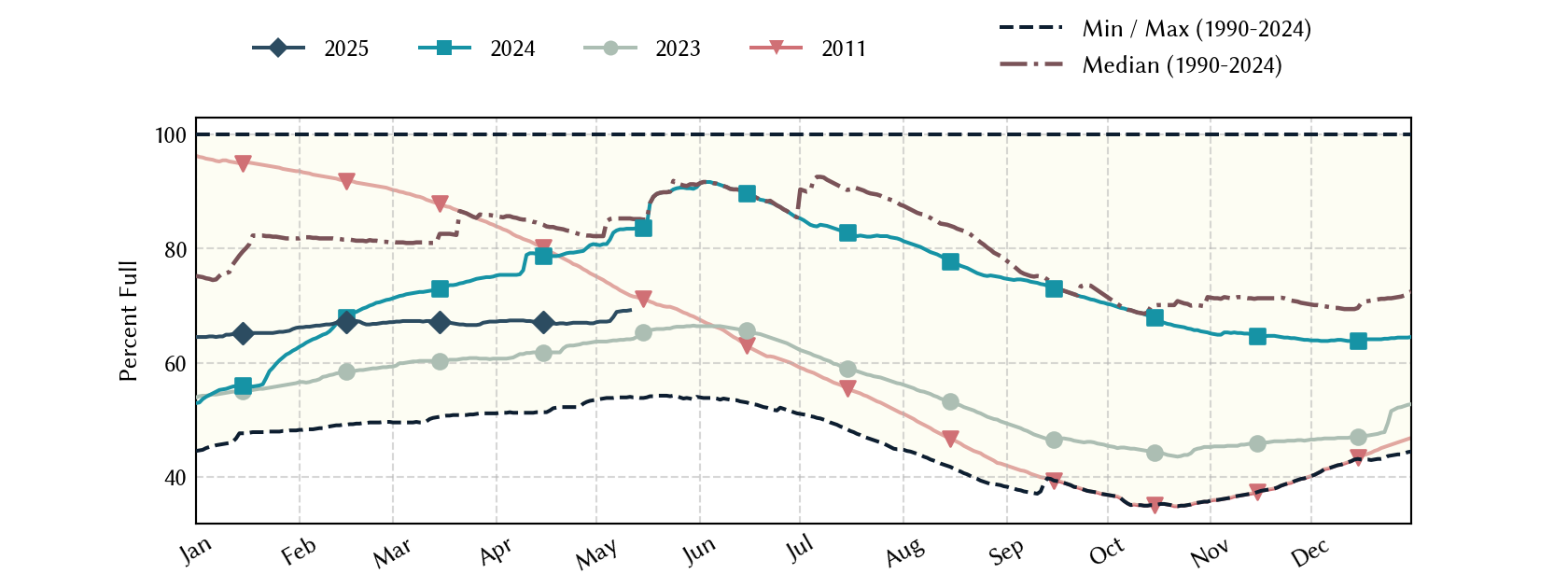

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2024-05-21 08:00 787.98 791.00 -3.02 below flood pool
1 hour prior 2024-05-21 07:00 787.98 791.00 -3.02 below flood pool
2 hours prior 2024-05-21 06:00 787.98 791.00 -3.02 below flood pool
6 hours prior 2024-05-21 02:00 787.98 791.00 -3.02 below flood pool
12 hours prior 2024-05-20 20:00 787.97 791.00 -3.03 below flood pool
24 hours prior 2024-05-20 08:00 787.94 791.00 -3.06 below flood pool
48 hours prior 2024-05-19 08:00 787.86 791.00 -3.14 below flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1979-01-01
Vertical datum NGVD29
Dead pool elevation 720.00 ft above NGVD29
Service spillway crest elevation 834.00 ft above NGVD29
Emergency spillway crest elevation 834.00 ft above NGVD29
Flood pool elevation 834.00 ft above NGVD29
Maximum design elevation 856.20 ft above NGVD29
Top of dam elevation 861.00 ft above NGVD29
Conservation pool elevation 791.00 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

1979-01-01 (source: USGS)
1995-05-01 (source: TWDB) : GIS Data
2005-05-01 (source: TWDB) : GIS Data
2016-01-01 (source: TWDB) : GIS Data
Data Source USGS:08104650

Lake Location
