Recent changes

2013-02-12: The rating curve for this reservoir has been updated and replaced with data from the Texas Water Development Board's Report 126.

Oak Creek Reservoir: 50.3% full as of 2017-11-22

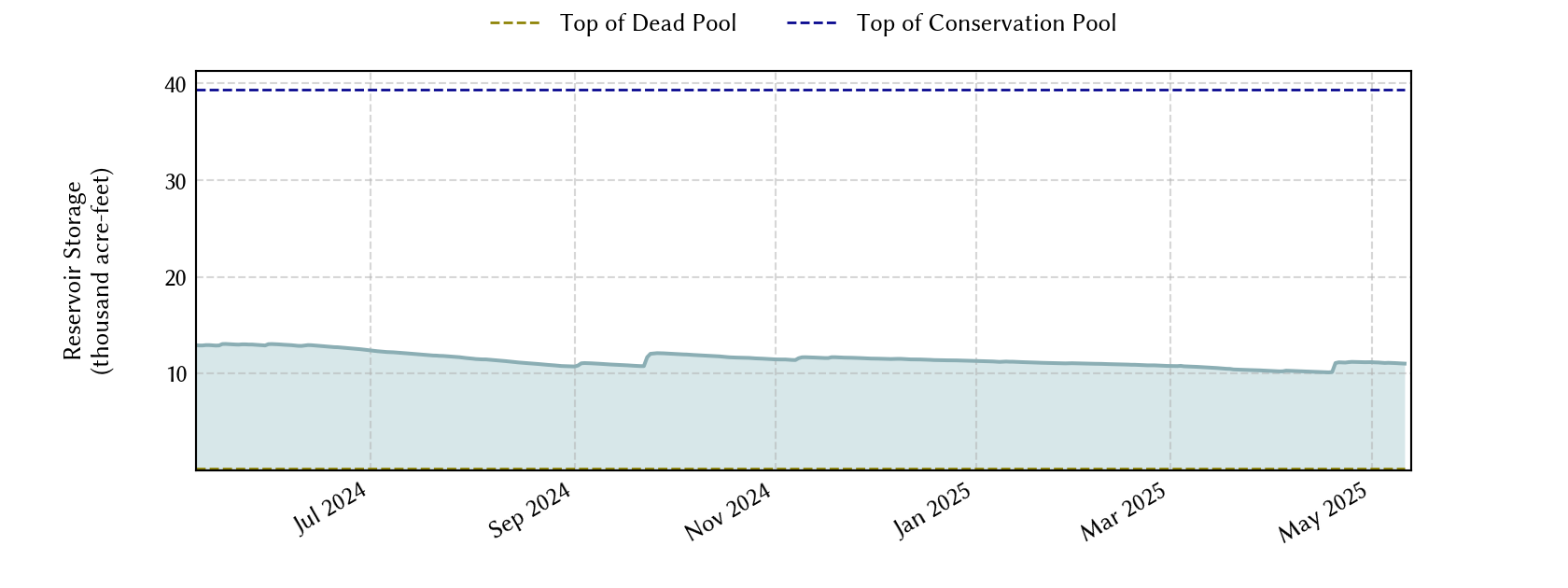

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, and (2) the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

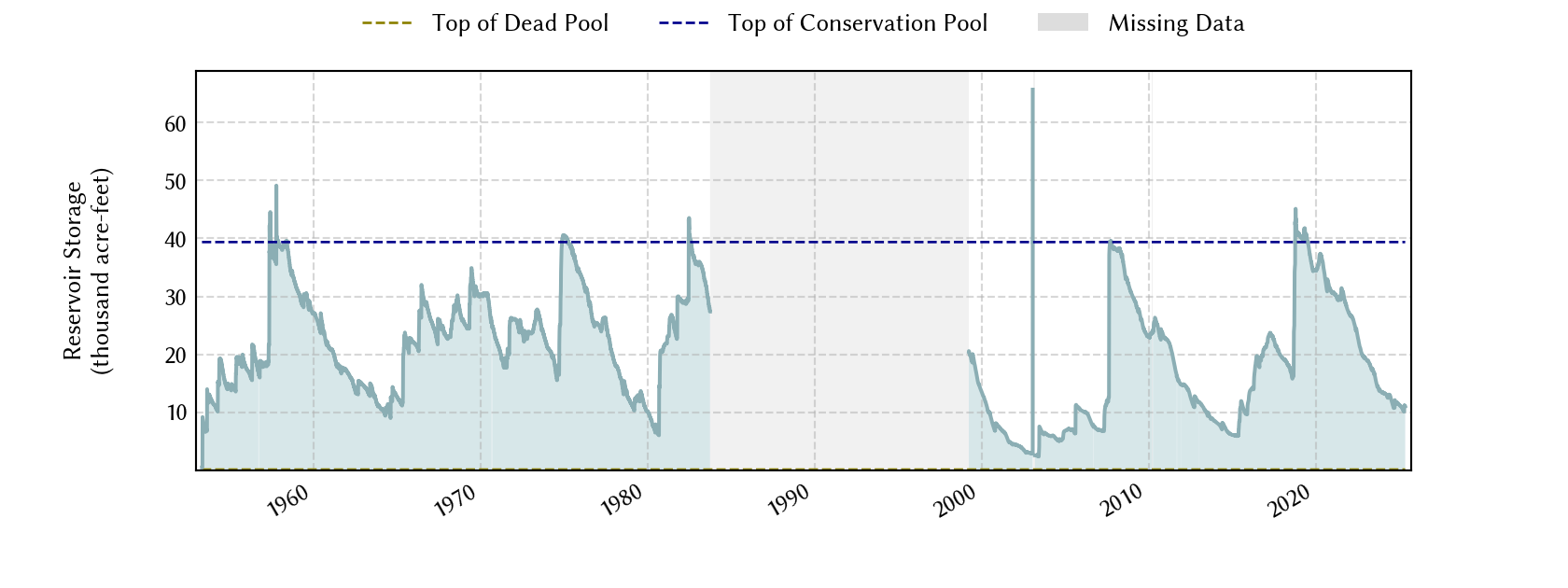

Historical Data

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Most recent 2017-11-22 50.3 1,989.63 19,888 19,738 39,210 1,375
1 day prior 2017-11-21 50.4 1,989.65 19,912 19,762 39,210 1,376
2 days prior 2017-11-20 50.4 1,989.66 19,925 19,775 39,210 1,377
1 week prior 2017-11-15 50.6 1,989.72 19,997 19,847 39,210 1,383
1 month prior 2017-10-22 51.5 1,989.98 20,325 20,175 39,210 1,404
3 months prior 2017-08-22 54.3 1,990.77 21,426 21,276 39,210 1,474
6 months prior 2017-05-22 59.0 1,992.03 23,266 23,116 39,210 1,590
1 year prior 2016-11-22 52.7 1,990.34 20,820 20,670 39,210 1,436
*

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2017-11-23 04:45 1,989.62 2,000.0 -10.4 below flood pool
1 hour prior 2017-11-23 03:45 1,989.62 2,000.0 -10.4 below flood pool
2 hours prior 2017-11-23 02:45 1,989.62 2,000.0 -10.4 below flood pool
6 hours prior 2017-11-22 22:45 1,989.62 2,000.0 -10.4 below flood pool
12 hours prior 2017-11-22 16:45 1,989.62 2,000.0 -10.4 below flood pool
24 hours prior 2017-11-22 04:45 1,989.63 2,000.0 -10.4 below flood pool
48 hours prior 2017-11-21 04:45 1,989.65 2,000.0 -10.3 below flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1952-01-01
Vertical datum NGVD29
Gauge USGS:08125500
Dead pool elevation 1,951.0 ft above NGVD29
Service spillway crest elevation 2,000.0 ft above NGVD29
Emergency spillway crest elevation 2,005.0 ft above NGVD29
Top of dam elevation 2,014.0 ft above NGVD29
Conservation pool elevation 2,000.0 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

1974-10-01 (source: twdb)

Lake Location
