Proctor Lake: 98.8% full as of 2017-03-23

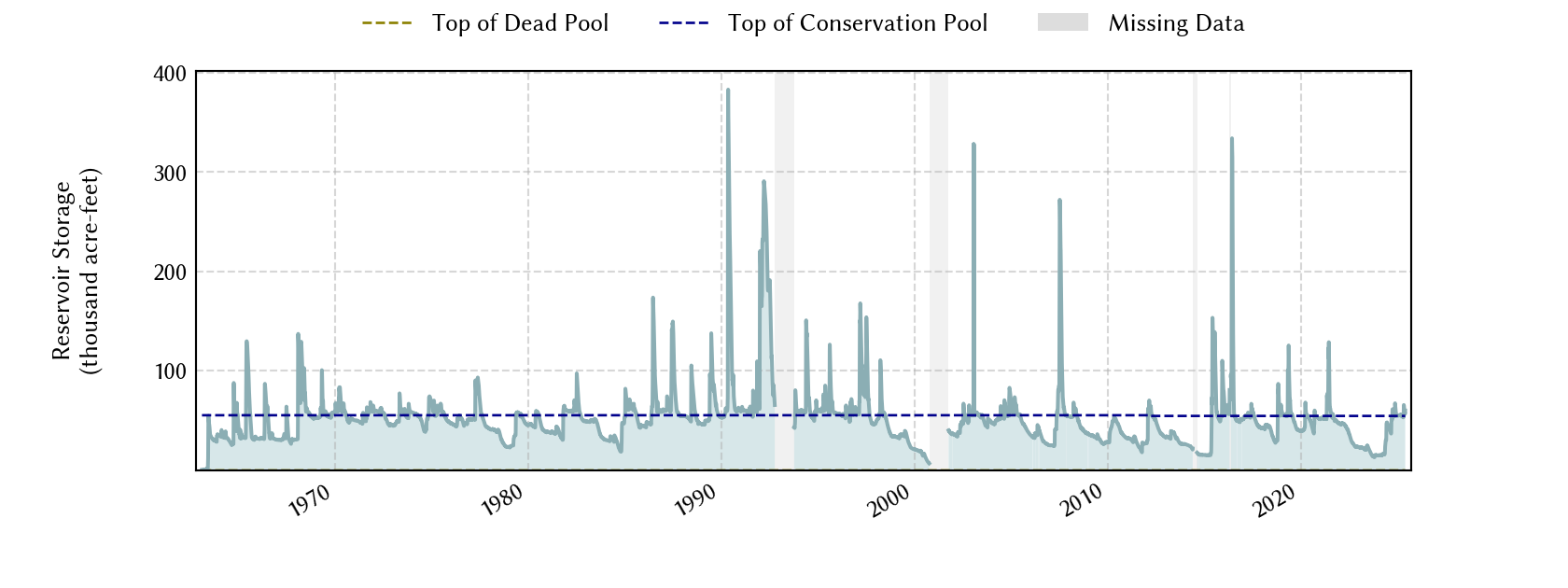

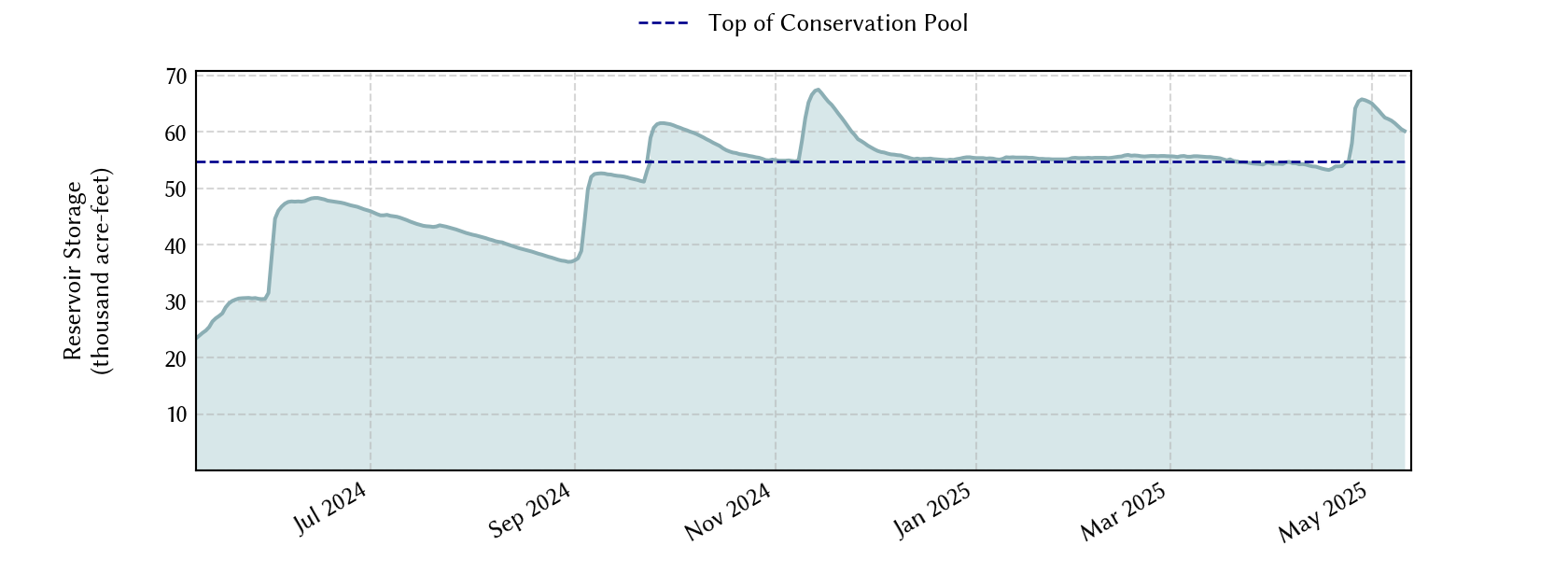

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, while the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

Historical Data

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Most recent 2017-03-23 98.8 1,161.86 54,119 54,119 54,762 4,588
1 day prior 2017-03-22 99.5 1,161.94 54,486 54,486 54,762 4,603
2 days prior 2017-03-21 99.5 1,161.94 54,486 54,486 54,762 4,603
1 week prior 2017-03-16 99.4 1,161.93 54,440 54,440 54,762 4,601
1 month prior 2017-02-23 100.0 1,162.08 55,132 54,762 54,762 4,631
3 months prior 2016-12-23 94.9 1,161.39 51,981 51,981 54,762 4,509
6 months prior 2016-09-23 91.4 1,160.96 50,056 50,056 54,762 4,444
1 year prior 2016-03-23 100.0 1,163.10 59,952 54,762 54,762 - n.a. -
*

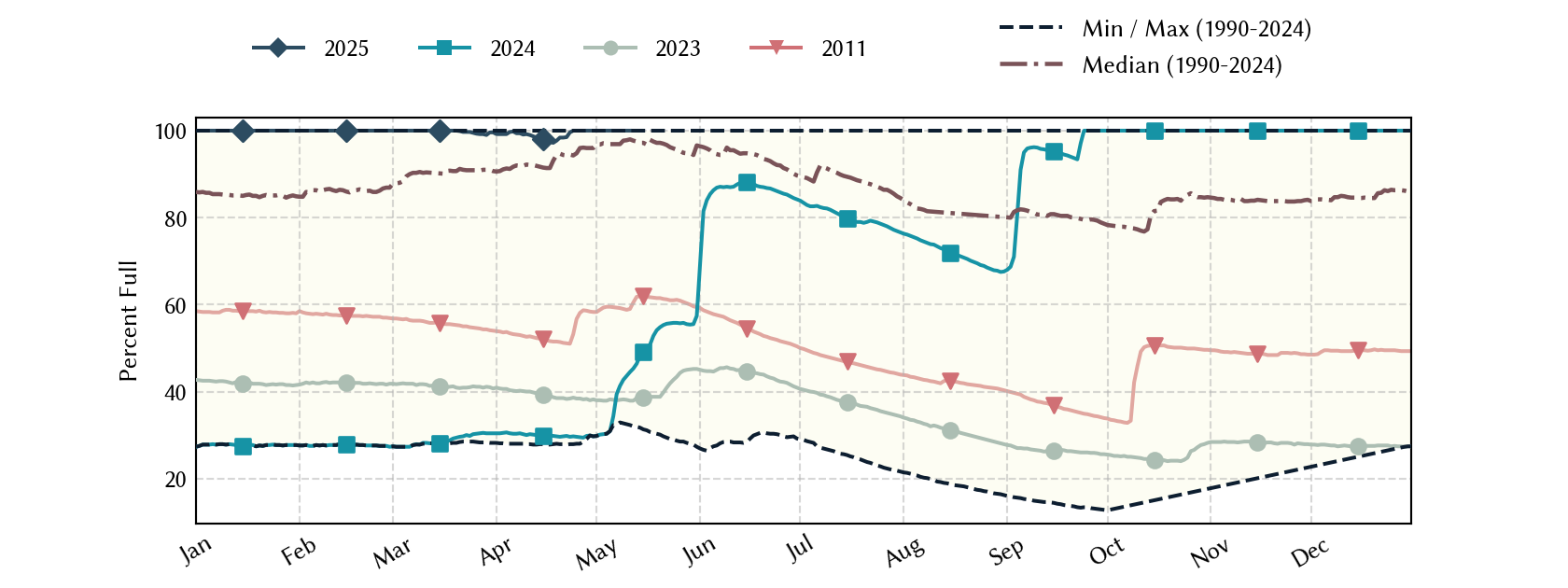

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2017-03-24 00:30 1,161.76 1,162.0 -0.2 below flood pool
1 hour prior 2017-03-23 23:30 1,161.82 1,162.0 -0.2 below flood pool
2 hours prior 2017-03-23 22:30 1,161.80 1,162.0 -0.2 below flood pool
6 hours prior 2017-03-23 18:30 1,161.79 1,162.0 -0.2 below flood pool
12 hours prior 2017-03-23 12:30 1,161.79 1,162.0 -0.2 below flood pool
24 hours prior 2017-03-23 00:30 1,161.95 1,162.0 -0.0 below flood pool
48 hours prior 2017-03-22 00:30 1,161.93 1,162.0 -0.1 below flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1963-01-01
Vertical datum NGVD29
Gauge USGS:08099400
Dead pool elevation 1128.0 ft above NGVD29
Service spillway crest elevation 1162 ft above NGVD29
Conservation pool elevation 1162.0 ft above NGVD29
Top of flood gate elevation 1197 ft above NGVD29
Emergency spillway crest elevation 1197 ft above NGVD29
Flood pool elevation 1197 ft above NGVD29
Maximum design elevation 1201 ft above NGVD29
Top of dam elevation 1206 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

2002-07-01 (source: twdb) : GIS Data
2012-02-01 (source: twdb) : GIS Data

Lake Location
