Somerville Lake: 100.0% full as of 2016-12-05

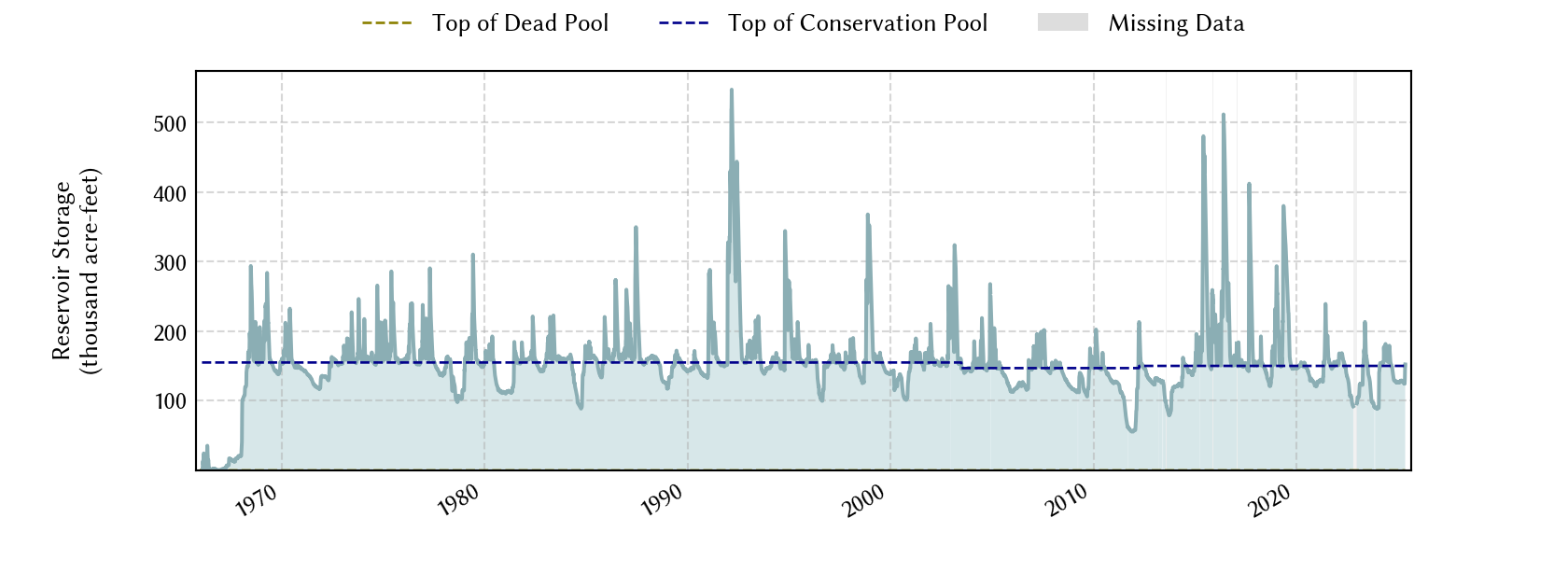

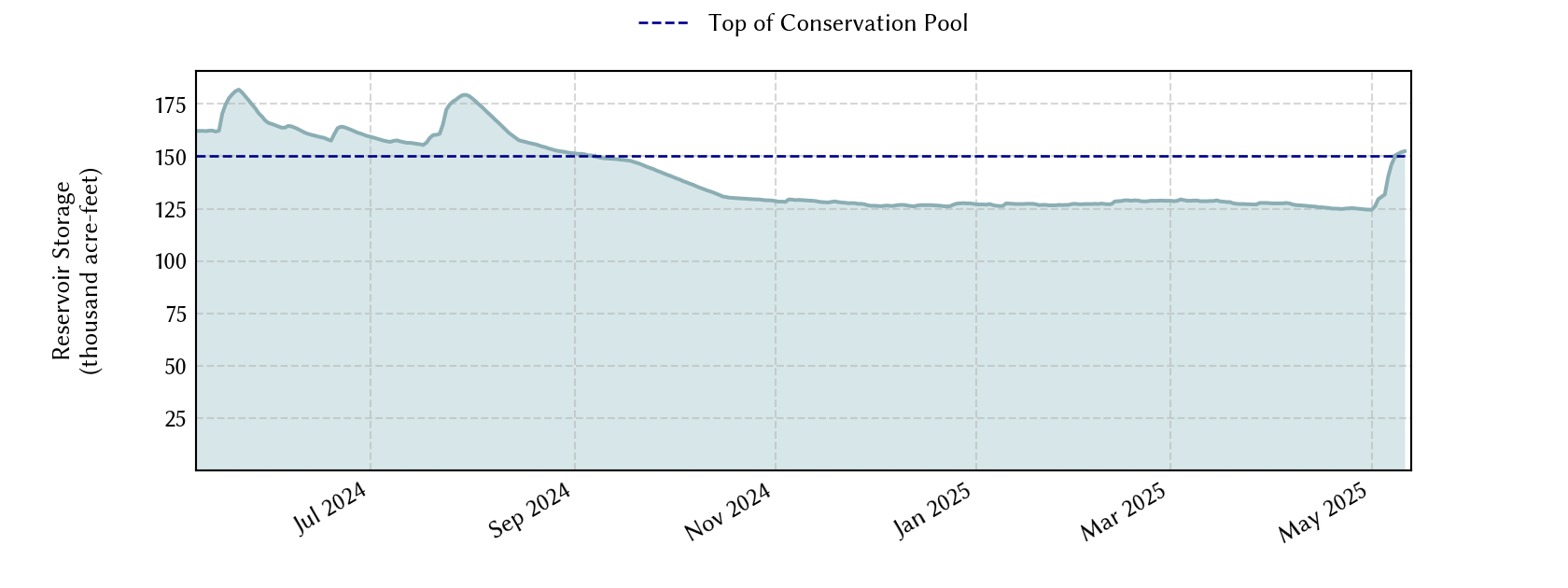

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, while the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

Historical Data

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Most recent 2016-12-05 100.0 238.77 155,564 147,104 147,104 11,133
1 day prior 2016-12-04 100.0 238.46 152,131 147,104 147,104 11,014
2 days prior 2016-12-03 100.0 238.20 149,279 147,104 147,104 10,916
1 week prior 2016-11-28 100.0 238.15 148,735 147,104 147,104 10,898
1 month prior 2016-11-05 100.0 238.07 147,864 147,104 147,104 10,869
3 months prior 2016-09-05 100.0 244.68 228,538 147,104 147,104 - n.a. -
6 months prior 2016-06-05 100.0 259.14 453,523 147,104 147,104 - n.a. -
1 year prior 2015-12-05 100.0 242.68 202,230 147,104 147,104 - n.a. -
*

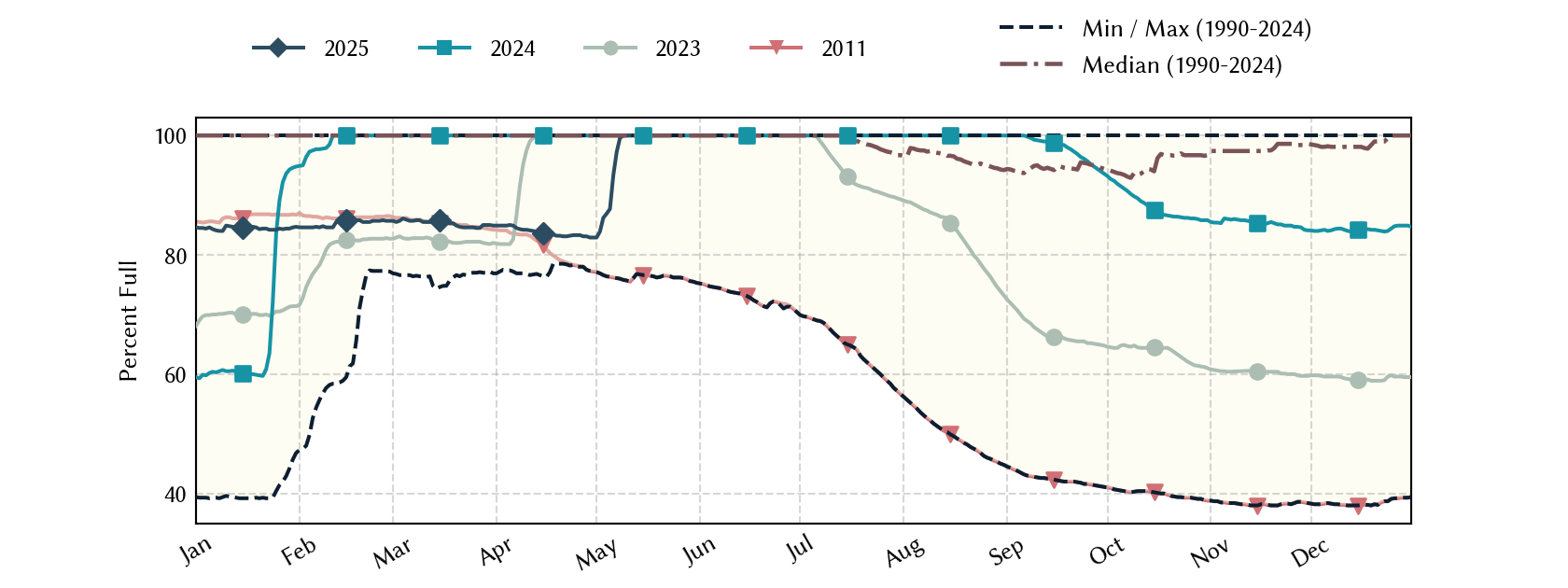

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2016-12-06 05:00 239.03 238.0 1.0 into flood pool
1 hour prior 2016-12-06 04:00 239.02 238.0 1.0 into flood pool
2 hours prior 2016-12-06 03:00 239.01 238.0 1.0 into flood pool
6 hours prior 2016-12-05 23:00 238.94 238.0 0.9 into flood pool
12 hours prior 2016-12-05 17:00 238.86 238.0 0.9 into flood pool
24 hours prior 2016-12-05 05:00 238.67 238.0 0.7 into flood pool
48 hours prior 2016-12-04 05:00 238.37 238.0 0.4 into flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1967-01-01
Vertical datum NGVD29
Gauge USGS:08109900
Dead pool elevation 206.0 ft above NGVD29
Conservation pool elevation 238.0 ft above NGVD29
Emergency spillway crest elevation 258 ft above NGVD29
Flood pool elevation 258 ft above NGVD29
Maximum design elevation 274.5 ft above NGVD29
Top of dam elevation 280 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

1967-01-01 (source: usgs)
2003-07-01 (source: twdb) : GIS Data
