recent changes

2013-05-08: The rating curve for this reservoir has been updated and replaced with the most recent data from the TWDB Hydrosurvey Program.

Lake Stamford is 99.9% full as of 2016-09-30

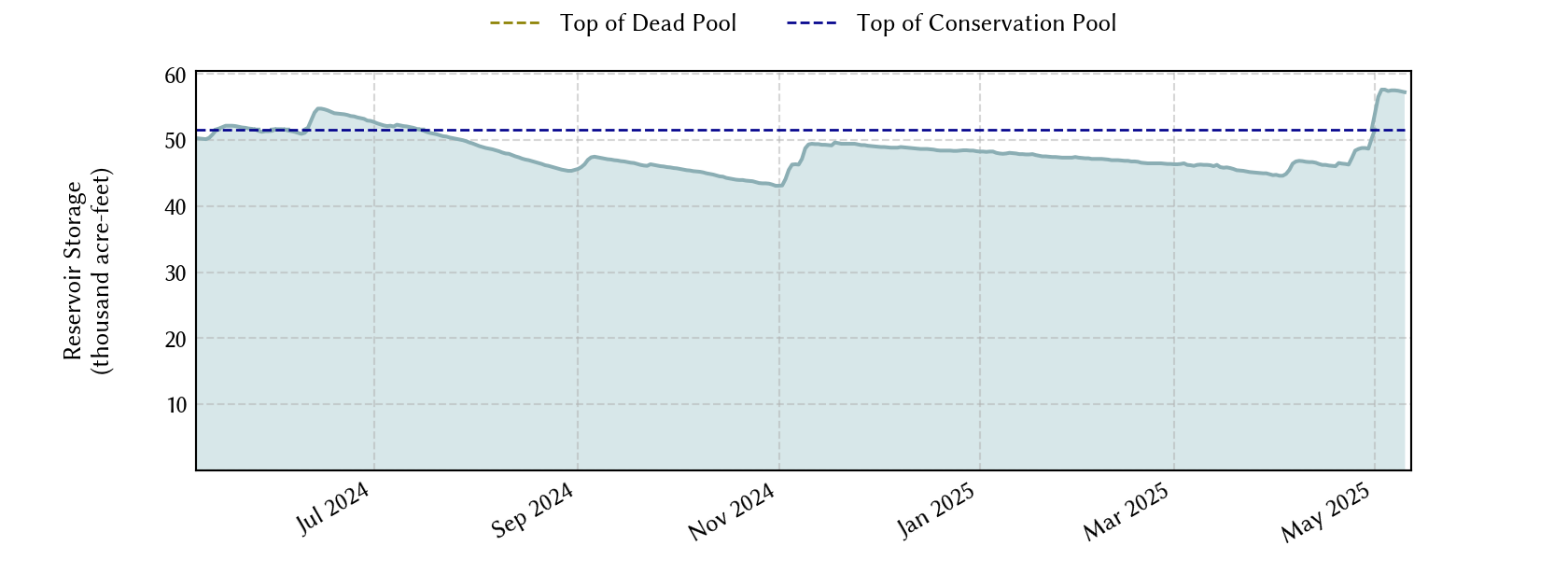

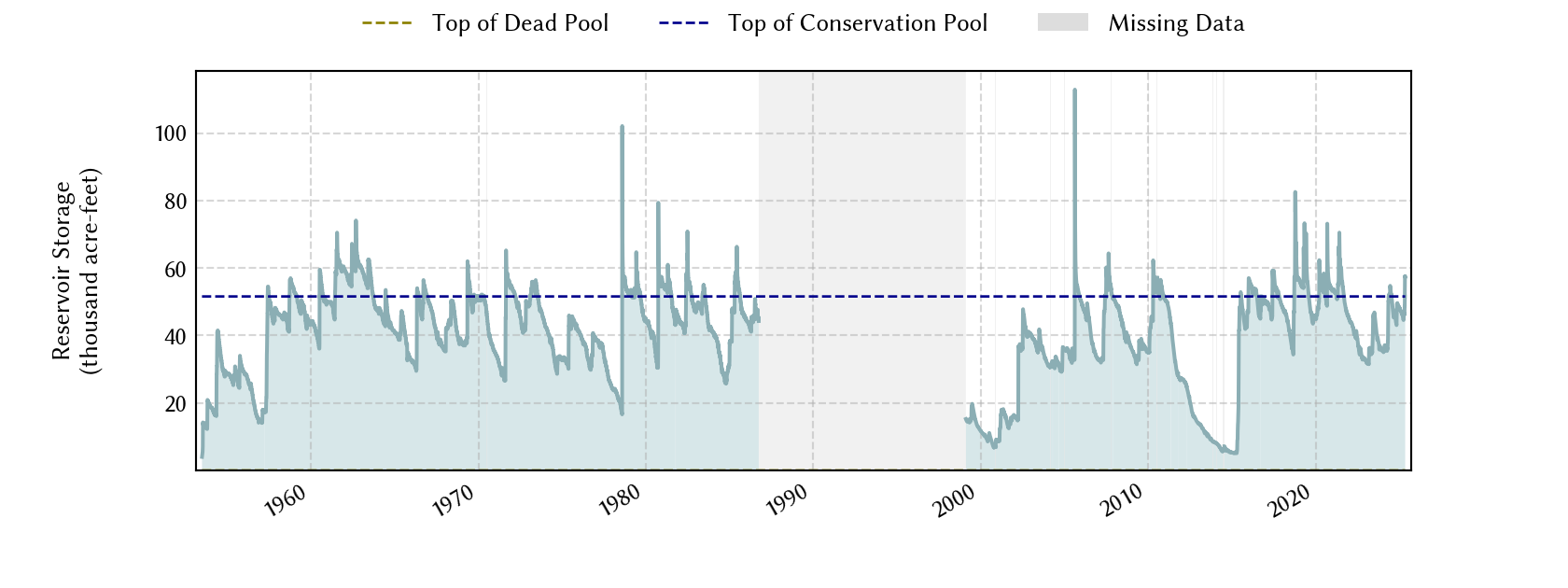

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, while the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Most recent 2016-09-30 99.9 1,416.79 51,522 51,519 51,570 5,120
1 day prior 2016-09-29 100.0 1,416.80 51,573 51,570 51,570 5,124
2 days prior 2016-09-28 100.0 1,416.81 51,625 51,570 51,570 5,128
1 week prior 2016-09-23 92.4 1,416.01 47,656 47,653 51,570 4,844
1 month prior 2016-08-30 89.5 1,415.70 46,172 46,169 51,570 4,733
3 months prior 2016-06-30 99.6 1,416.76 51,369 51,366 51,570 5,110
6 months prior 2016-03-30 100.0 1,417.09 53,084 51,570 51,570 5,226
1 year prior 2015-09-30 84.9 1,415.19 43,794 43,791 51,570 4,554
*

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2016-10-01 03:30 1,416.79 1,416.8 -0.0 below flood pool
1 hour prior 2016-10-01 02:30 1,416.79 1,416.8 -0.0 below flood pool
2 hours prior 2016-10-01 01:30 1,416.78 1,416.8 -0.0 below flood pool
6 hours prior 2016-09-30 21:30 1,416.78 1,416.8 -0.0 below flood pool
12 hours prior 2016-09-30 15:30 1,416.80 1,416.8 0.0 into flood pool
24 hours prior 2016-09-30 03:30 1,416.79 1,416.8 -0.0 below flood pool
48 hours prior 2016-09-29 03:30 1,416.81 1,416.8 0.0 into flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1953-01-01
Vertical datum NGVD29
Gauge USGS:08084500
Dead pool elevation 1382.8 ft above NGVD29
Service spillway crest elevation 1416.8 ft above NGVD29
Conservation pool elevation 1416.8 ft above NGVD29
Emergency spillway crest elevation 1425.8 ft above NGVD29
Top of dam elevation 1436.8 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

1999-08-01 (source: twdb) : GIS Data
