Lake Striker: 90.5% full as of 2018-09-21

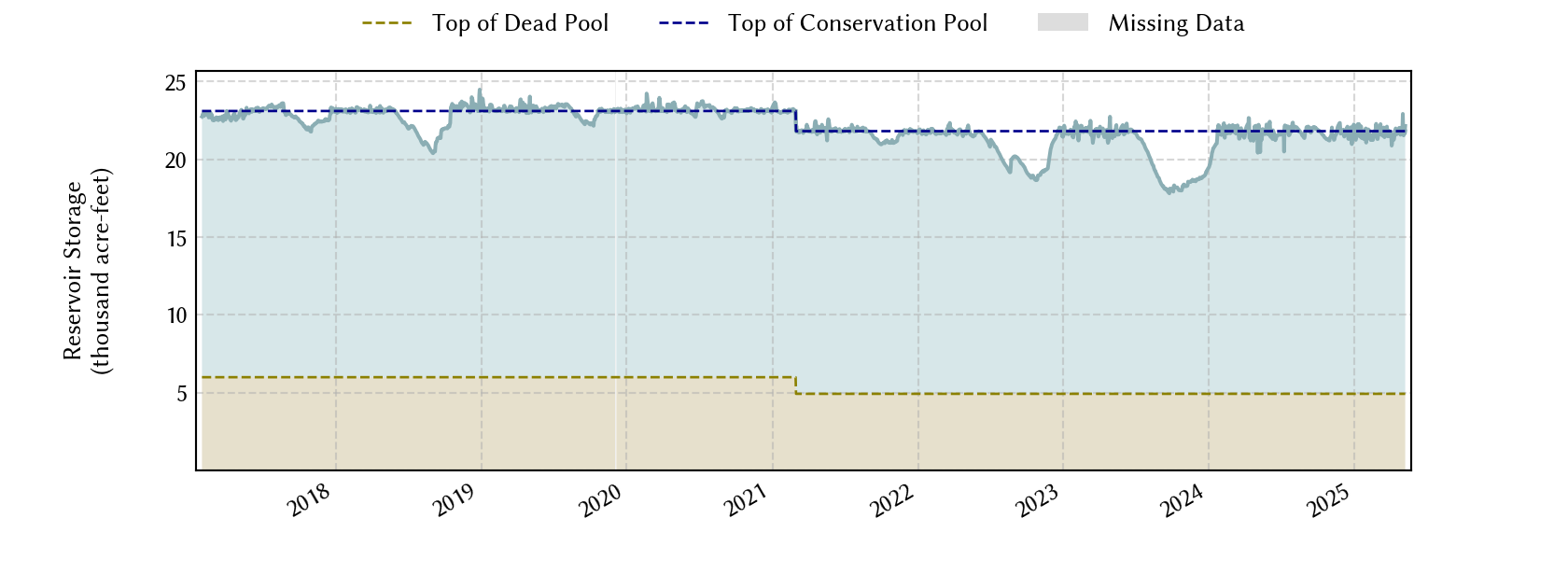

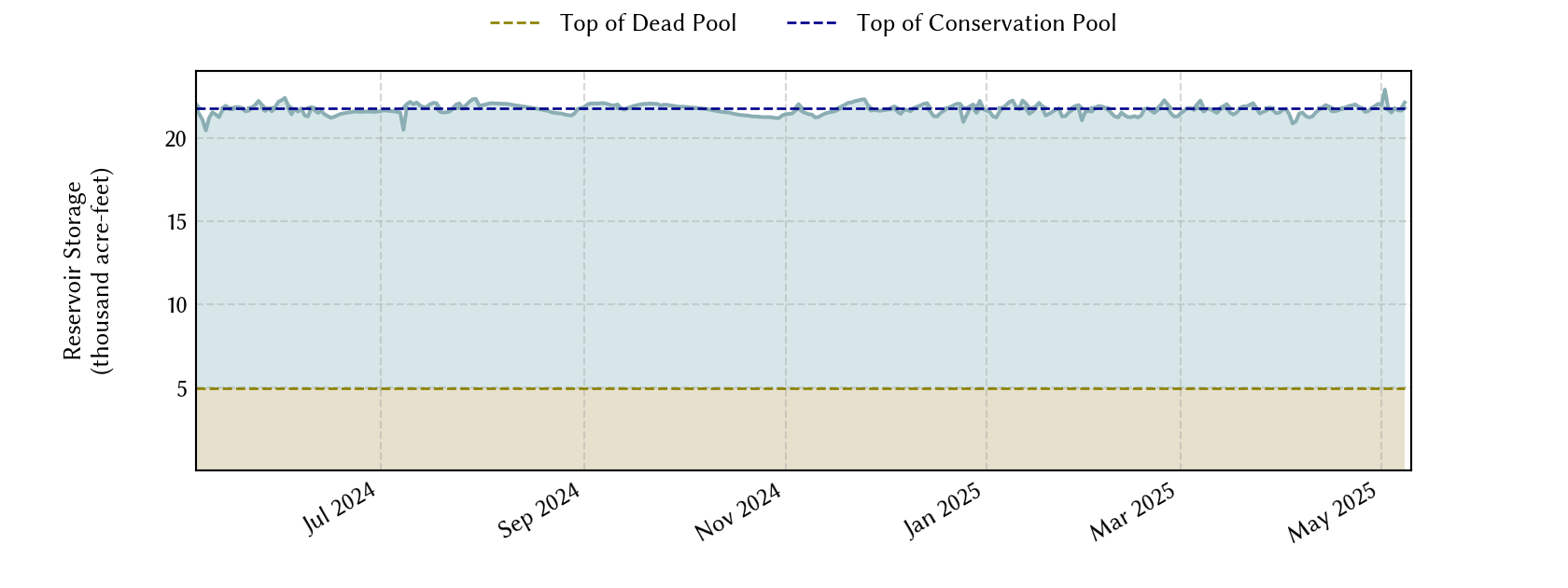

The elevation-storage rating curve used to produce the storage hydrograph is made of two segments: (1) the segment up to the conservation pool top (below the red line) is based on measured data, and (2) the segment in the flood pool (above the red line) is an extrapolation from the first segment and shouldn't be relied upon for flood storage information.

Historical Data

Date Percent Full Mean Water Level
(ft)
Reservoir Storage
(acre-ft)
Conservation Storage
(acre-ft)
Conservation Capacity
(acre-ft)
Surface Area
(acres)
Most recent 2018-09-21 90.5 292.08 21,254 15,323 16,934 1,870
1 day prior 2018-09-20 90.5 292.08 21,254 15,323 16,934 1,870
2 days prior 2018-09-19 90.5 292.08 21,254 15,323 16,934 1,870
1 week prior 2018-09-14 90.3 292.06 21,217 15,286 16,934 1,869
1 month prior 2018-08-21 87.5 291.81 20,752 14,821 16,934 1,854
3 months prior 2018-06-21 96.6 292.63 22,291 16,360 16,934 1,899
6 months prior 2018-03-21 100.0 292.99 22,865 16,934 16,934 1,920
1 year prior 2017-09-21 98.4 292.79 22,595 16,664 16,934 1,907
*

Percent Full is based on Conservation Storage and Conservation Capacity and doesn't account for storage in flood pool.

**

   Values above, including today's are averaged conditions. For near real-time instantaneous water level, see table below or the interactive map viewer.

Most Recent Instantaneous Water Level

Date/time Water Level
(ft)
Conservation Pool Elevation
(ft)
Height Above Conservation Pool
(ft)
Most recent 2018-09-21 23:45 292.08 292.9 -0.9 below flood pool
1 hour prior 2018-09-21 22:45 292.08 292.9 -0.9 below flood pool
2 hours prior 2018-09-21 21:45 292.08 292.9 -0.9 below flood pool
6 hours prior 2018-09-21 17:45 292.04 292.9 -0.9 below flood pool
12 hours prior 2018-09-21 11:45 292.08 292.9 -0.9 below flood pool
24 hours prior 2018-09-20 23:45 292.08 292.9 -0.9 below flood pool
48 hours prior 2018-09-19 23:45 292.10 292.9 -0.8 below flood pool
*

Data is provisional and subject to revision.

Additional Information

Impoundment date 1957-01-01
Vertical datum NAVD88
Gauge USGS:08033810
Dead pool elevation 282.0 ft above NGVD29
Emergency spillway crest elevation 294.0 ft above NGVD29
Top of dam elevation 309.0 ft above NGVD29
Conservation pool elevation 293.0 ft above NGVD29
Data download (CSV) period of record, last one year, last 30 days

Elevation-Area-Capacity Curves

1996-12-01 (source: twdb) : GIS Data

Lake Location
